Flat Glass Tempering

Passing Section Series

Optional Colors : Stellar Grey、Stellar Red、Obsidian Blue
Optional Appearance : Standard

This series supports highly customized options. Process modules and functional components can be tailored for optical electronics, home decoration, sanitary ware, fire-resistant glass and other processing categories.
Featuring a mature and stable structure with configurable streamlined setups, it is suitable for mass production of glass in various specifications to meet clients’ personalized production demands.

Product Features

Exposed dot matrix heating system improves heating uniformity and speed inside the furnace, and greatly facilitates maintenance of heating elements.
With variable-frequency fan control technology, the system cuts fan runtime under heavy load and achieves effective energy conservation.
The self-developed temperature control system paired with high-precision temperature control modules enables precise temperature control within ±2℃.
Separated tempering and quenching processes expand the applicable glass thickness range and shorten tempering cycles.
With scientific layout and six-sided polishing technology, the premium insulation layer boasts better thermal conductivity and heat storage performance, greatly improving heat efficiency and reducing heat loss.
Fan Zero-Speed Standby Technology，After finishing the tempering procedure, the tempering fan decelerates to zero speed for standby status, minimizing energy consumption of high-power fans to the greatest extent.

Glass Application

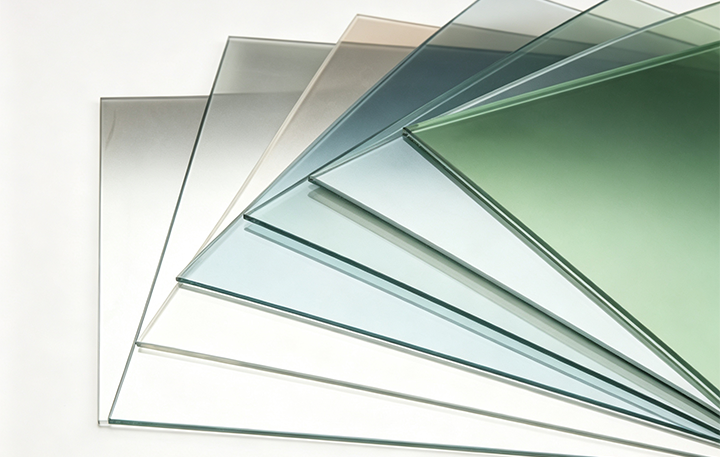

Coated Glass

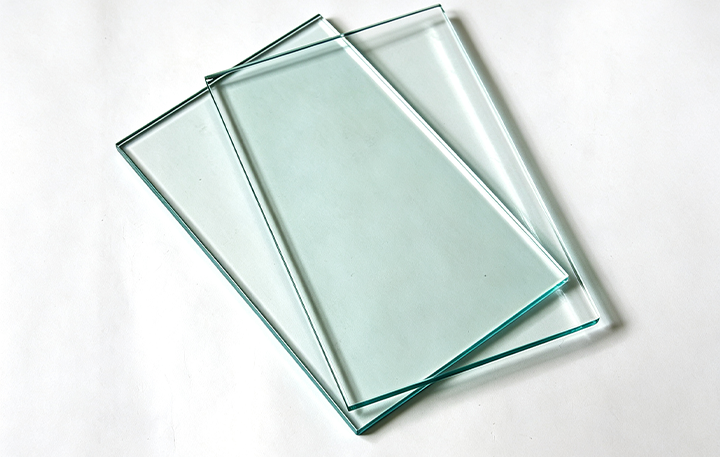

Float Glass

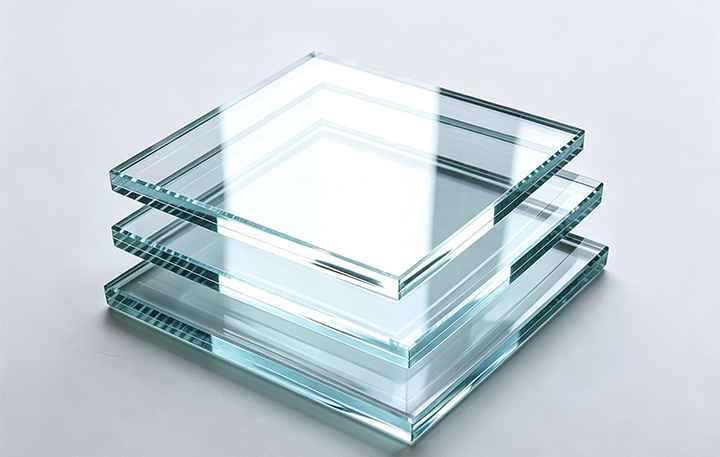

Ultra-clear Glass

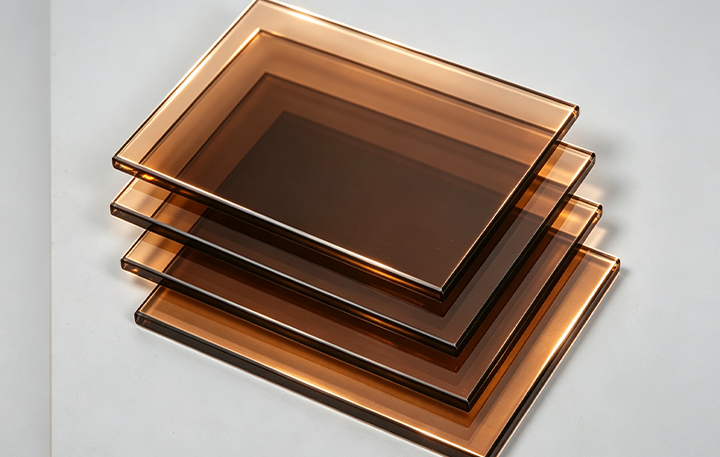

Tinted Glass

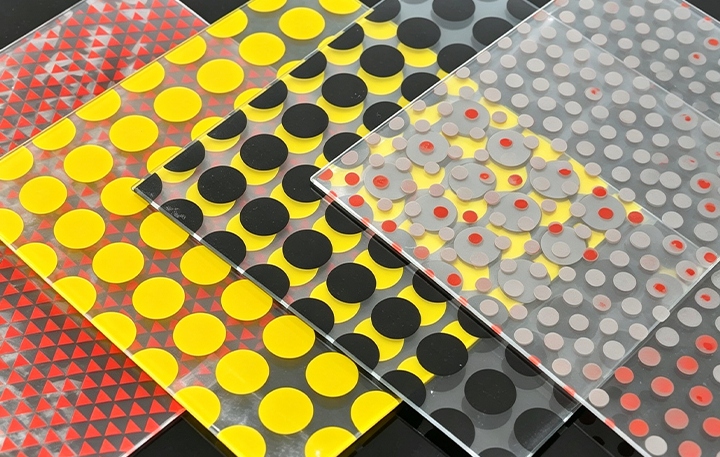

Screen Printed Glass

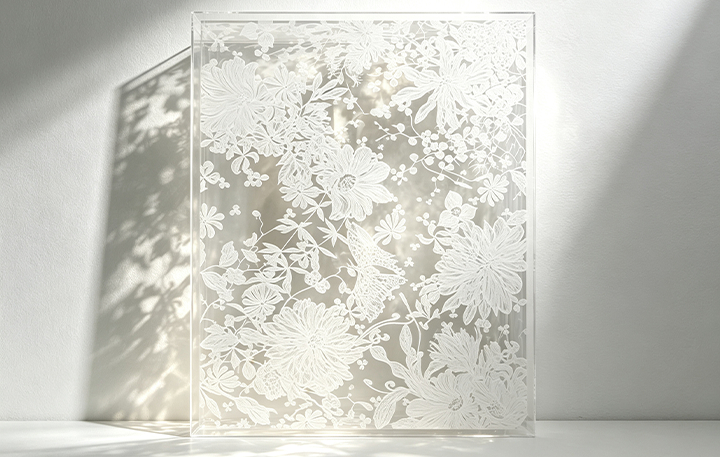

Patterned Glass

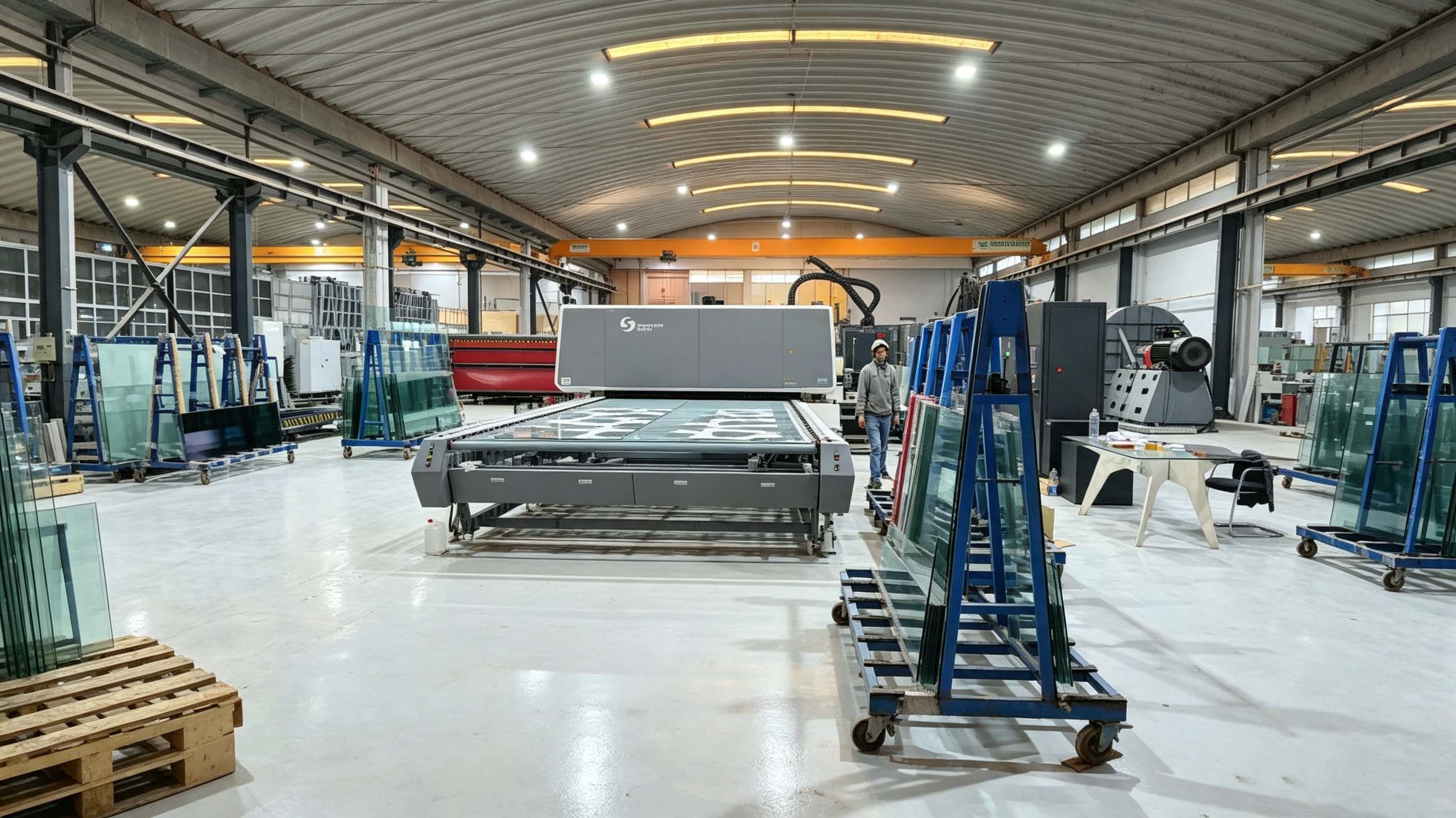

Relevant Cases

Choosing Southtech pass-through flat glass tempering furnace means choosing a truly customized solution tailored to you.We understand each production line and glass requirement is unique, so we provide full-chain customization from furnace size, technical configuration to cooling system.Whether efficient processing of 3~19mm multi-spec glass or precise matching for special processes, Southtech delivers tailored solutions: flexible heating layout, accurate temperature control strategy, intelligent cooling optimization, ensuring perfect fit with your production scenario.

Technical Parameters

Furnace Model	Max. Loading Area	Min. Glass Size	Processing Thickness Range	Production Capacity of Thinnest Clear Glass
TPG2506	2500×600mm	95×95mm	2.85~5mm	≥25batches/h
TPG3209	3200×900mm	150×150mm	2.85~6mm	≥25batches/h
TPG5013	5000×1300mm	Long edge≥300mmNarrow edge≥100mm	2.85~12mm	≥23batches/h
TPG5013-2S	5000×1300mm	Long edge≥300mmNarrow edge≥100mm	2.85~12mm	≥43batches/h
TPG6013	6000×1300mm	Long edge≥300mmNarrow edge≥100mm	2.85~12mm	≥23batches/h
TPG6013-2S	6000×1300mm	Long edge≥300mmNarrow edge≥100mm	2.85~12mm	≥42batches/h
TPG4010	4000×1000mm	Long edge≥300mmNarrow edge≥100mm	2.85~12mm	≥24batches/h
TPG5010	5000×1000mm	Long edge≥300mmNarrow edge≥100mm	2.85~12mm	≥23batches/h
TPG6010	6000×1000mm	Long edge≥300mmNarrow edge≥100mm	2.85~12mm	≥22batches/h
TPG4015	4000×1500mm	Long edge≥300mmNarrow edge≥100mm	3.0~12mm	≥23batches/h
TPG5015	5000×1500mm	Long edge≥300mmNarrow edge≥100mm	3.0~12mm	≥22batches/h
TPG6015	6000×1500mm	Long edge≥300mmNarrow edge≥100mm	3.0~12mm	≥22batches/h
TPG5020	5000×2000mm	300×300mm	3.5~19mm	≥20batches/h
TPG5022	5000×2200mm	300×300mm	3.5~19mm	≥20batches/h
TPG6020	6000×2000mm	300×300mm	3.5~19mm	≥19batches/h
TPG6022	6000×2200mm	300×300mm	3.5~19mm	≥19batches/h
FTPG6020	6000×2000mm	300×300mm	5.0~19mm	≥14batches/h
FTPG6022	6000×2000mm	300×300mm	5.0~19mm	≥14batches/h
For more product parameters, please leave a message.

Southtech has successfully passed the annual audit for the three ISO systems

Recently, South Glass Technology co.,Ltd has successfully passed the annual audit for the ISO9001 Quality Management System, ISO14001 Environmental Management System, and ISO45001 Occupational Health and Safety Management System.

The effect of the passing section of the glass tempering furnace on glass tempering

The glass tempering furnace is a key equipment for converting ordinary flat glass into high-strength and high safety tempered glass. Among them, the "through section" (usually referring to the quenching or cooling section) plays a crucial role in the tempering process. This article will explore the role of glass tempering furnaces in improving glass performance through stages.

Southtech 2025 Mid Year Marketing Conference successfully concluded, fully sprinting towards the second half of the year

Recently, the 2025 Mid Year Summary Conference of Southtech, with the theme of "Communication Breaking through Walls, Empowering Sprint in the Market", was successfully held in Wuhu, Anhui. The two-day conference brought a successful conclusion to the work in the first half of the year and clarified the direction for development in the second half of the year.

FAQ

Not at all. We also provide retrofitting and upgrade services for furnace equipment manufactured by competing brands.
One-time investment, lasting long-term returns. The 15%–20% capacity increase, lower energy usage and improved product quality help customers fulfill peak order demands and shorten delivery lead times, with substantial annual electricity cost savings leading to a short investment payback period. Large-scale projects including those with China National Building Material have passed acceptance and maintained stable operation, making this a reliable upgrade solution.
The upgraded system supports automatic power compensation, real-time fan fault alerts, and remote online equipment diagnostics. It lowers operational barriers, enables mobile production supervision, maintains consistent product quality, and minimizes manual intervention.
We offer 7×24-hour technical support and regional on-site rapid response services. Our visualized service workflow and intelligent operation & maintenance platform enable real-time equipment monitoring, fault early warning, and digital management of production data, delivering complete peace of mind for customers.
Absolutely. We maximize the reuse of core original parts such as fans, paired with customized high-efficiency fans and IE4/IE5 energy-efficient motors to lower upgrade costs and shorten construction lead times. Furnace extension is also available (e.g., extending a 30m furnace to 42m or 46m) to drastically boost throughput.
Southtech adopts a brand-new patented heating system paired with optimized structures, which effectively cuts unit energy consumption and slashes long-term operating costs.
The optimized convection mode drastically reduces wind marks (invisible when stacking 5 sheets of clear glass with a total thickness of 50mm). It greatly raises the yield rate of high-end glass and ensures consistent finished product quality.
Yes, the upgrade brings a notable capacity boost. Field tests conducted on 5mm clear float glass show the hourly output rises from an average of 14 batches before the upgrade to 15–19 batches afterward, representing a 15%–20% efficiency improvement.
The technical upgrade solution for Southtech architectural radiant furnaces is specially designed for the retrofitting of traditional old convection-radiant furnaces. Upgrading to an advanced new convection system delivers remarkable improvements in equipment performance. Equipment from competing brands can also be retrofitted with Soos systems, delivering long-term benefits from a one-time investment.
