Equipped with CNC precise arc regulation and hydraulic drive, the unit achieves high bending precision and neat arc edges. Configurable front horizontal & rear longitudinal bending modules adapt to integrated forming of intricate curved glass. Versatile for all high-precision bent glass manufacturing applications.
The longitudinal bending section forms large-radius vertical curved surfaces, while the horizontal bending section processes transverse curvature simultaneously. Precise shaping of complex double-curved glass is achieved without reheating or line switching.
Manual arc adjustment mode is optional, which can easily accommodate various curvature radii and efficiently meet diversified production requirements of bent tempered glass.
Equipped with precision hydraulic drive for stable transmission, it ensures consistent curvature for large-radius bending, greatly enhancing bending stability and finished product yield.
Adopting advanced CNC control for digital arc adjustment and automatic compensation, it ensures consistent bending radii, improves forming accuracy for small and complex curves, shortens commissioning time and stabilizes dimensional consistency in mass production.
It features a user-friendly PC-based arc adjustment structure for intelligent operation. Simply input curvature parameters, and the system will perform automatic precise positioning, drastically cutting manual commissioning time and trial-and-error costs.
The uniquely designed pressing roller structure ensures even force on both glass ends during bending and effectively minimizes straight-edge defects at the two ends of horizontally bent glass.

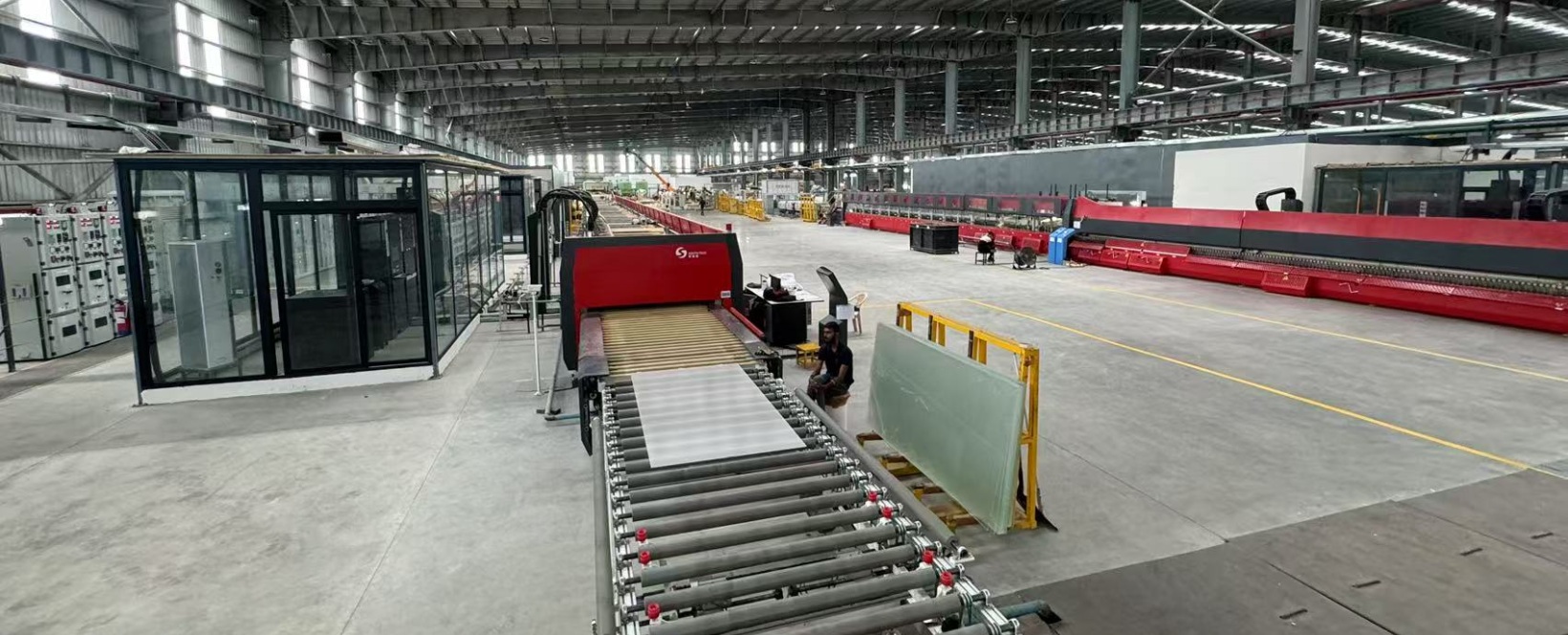

Choosing Southtech pass-through flat glass tempering furnace means choosing a truly customized solution tailored to you.We understand each production line and glass requirement is unique, so we provide full-chain customization from furnace size, technical configuration to cooling system.Whether efficient processing of 3~19mm multi-spec glass or precise matching for special processes, Southtech delivers tailored solutions: flexible heating layout, accurate temperature control strategy, intelligent cooling optimization, ensuring perfect fit with your production scenario.
| Furnace Model | Max. Loading Area | Min. Glass Size | Processing Thickness Range | Production capacity of the thinnest glass |
| HWG0813-3 | 800mmx1300mm | 350mmx200mm | 3.2~12mm | 50pcs/h |
| HWG1524-2 | 1500mmx2200mm | 400mmx400mm | 5.0~12mm | 27pcs/h |
| HWG2026-2 | 2500mmx2600mm | 400mmx400mm | 5.0~12mm | 27pcs/h |
| ZWG2020 | 2000mmx2000mm | 450mmx500mm | 6.0~12mm | 12pcs/h |
| ZWG5024 | 5000mmx2440mm | 450mmx500mm | 6.0~12mm | 12pcs/h |
| ZWG7030 | 7000mmx3000mm | 450mmx500mm | 6.0~12mm | 12pcs/h |
| ZWG8033 | 8000mmx3300mm | 450mmx500mm | 6.0~12mm | 12pcs/h |
| NTPWG5013+08 | 800mmx1300mm | 350mmx200mm | 3.2~12mm | 50pcs/h |
| NTPWG5024+15 | 1500mmx2200mm | 400mmx400mm | 5.0~12mm | 27pcs/h |
| NTPWG6026+20 | 2500mmx2600mm | 400mmx400mm | 5.0~12mm | 27pcs/h |
| NTPZWG3624+24 | 3660mmx2440mm | 450mmx500mm | 6.0~12mm | 12pcs/h |
| NTPZWG4224+24 | 4200mmx2440mm | 450mmx500mm | 6.0~12mm | 12pcs/h |
| NTPZWG5024+24 | 5000mmx2440mm | 450mmx500mm | 6.0~12mm | 12pcs/h |
| For more product parameters, please leave a message. | ||||
Not at all. We also provide retrofitting and upgrade services for furnace equipment manufactured by competing brands.
One-time investment, lasting long-term returns. The 15%–20% capacity increase, lower energy usage and improved product quality help customers fulfill peak order demands and shorten delivery lead times, with substantial annual electricity cost savings leading to a short investment payback period. Large-scale projects including those with China National Building Material have passed acceptance and maintained stable operation, making this a reliable upgrade solution.
The upgraded system supports automatic power compensation, real-time fan fault alerts, and remote online equipment diagnostics. It lowers operational barriers, enables mobile production supervision, maintains consistent product quality, and minimizes manual intervention.
We offer 7×24-hour technical support and regional on-site rapid response services. Our visualized service workflow and intelligent operation & maintenance platform enable real-time equipment monitoring, fault early warning, and digital management of production data, delivering complete peace of mind for customers.
Absolutely. We maximize the reuse of core original parts such as fans, paired with customized high-efficiency fans and IE4/IE5 energy-efficient motors to lower upgrade costs and shorten construction lead times. Furnace extension is also available (e.g., extending a 30m furnace to 42m or 46m) to drastically boost throughput.
Southtech adopts a brand-new patented heating system paired with optimized structures, which effectively cuts unit energy consumption and slashes long-term operating costs.
The optimized convection mode drastically reduces wind marks (invisible when stacking 5 sheets of clear glass with a total thickness of 50mm). It greatly raises the yield rate of high-end glass and ensures consistent finished product quality.
Yes, the upgrade brings a notable capacity boost. Field tests conducted on 5mm clear float glass show the hourly output rises from an average of 14 batches before the upgrade to 15–19 batches afterward, representing a 15%–20% efficiency improvement.
The technical upgrade solution for Southtech architectural radiant furnaces is specially designed for the retrofitting of traditional old convection-radiant furnaces. Upgrading to an advanced new convection system delivers remarkable improvements in equipment performance. Equipment from competing brands can also be retrofitted with Soos systems, delivering long-term benefits from a one-time investment.
