Flat Glass Tempering

Simba HC

Optional Colors : Stellar Grey、Stellar Red、Obsidian Blue
Optional Appearance : Standard、Luxurious

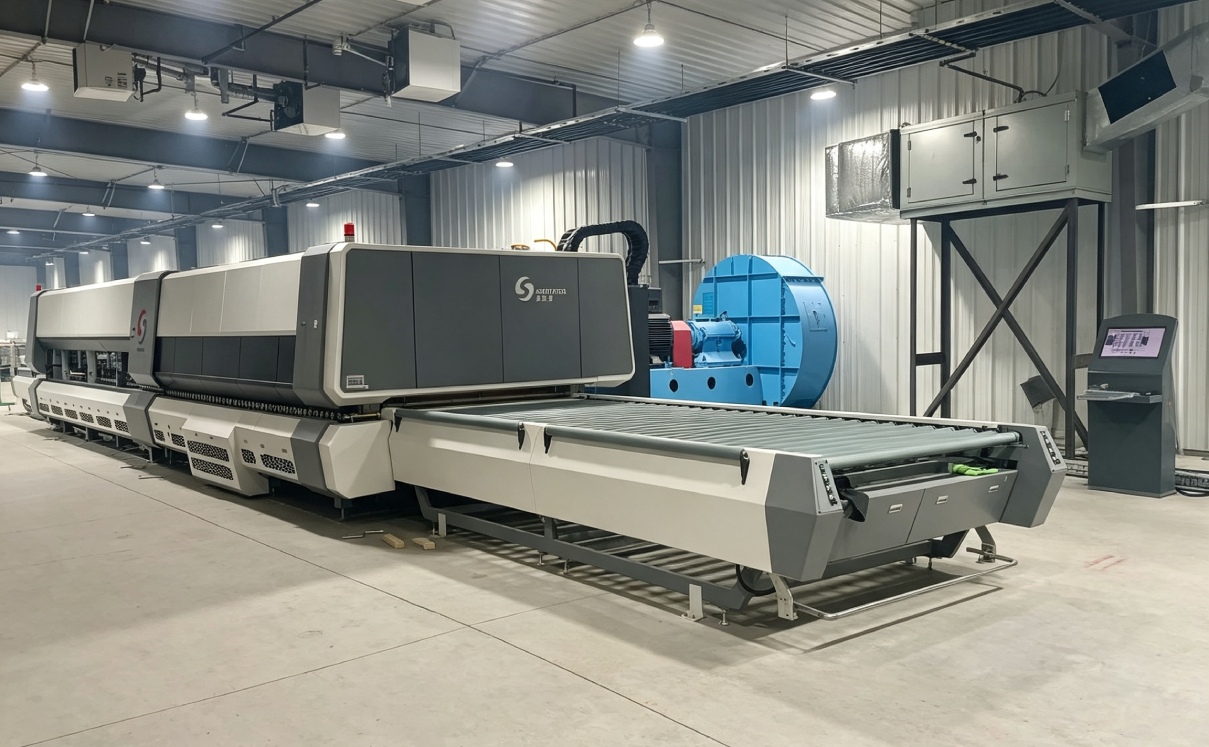

Comes standard with cabinet-type fan convection system and dual air chamber structure for overall upgrades in productivity, glass quality and operability. The intelligent temperature control system delivers effective energy saving. Featuring high practicality, superior performance and outstanding stability, it is an ideal choice for enterprises engaged in high-end architectural glass deep processing.

Product Features

Tailored for curtain wall and door & window glass production, the equipment supports high-efficiency batch manufacturing. It perfectly adapts to mass processing of Low-E laminated glass in mainstream specifications such as 5mm+5mm and 6mm+6mm, meeting the mass production demands of high-end architectural glass with stable quality and excellent productivity.
Designed with dual air chambers, the furnace evenly distributes thermal convection air pressure to minimize heating blind zones on glass sheets. It effectively prevents thermal deformations including warpage and undulation caused by local temperature differences, improves glass flatness and optical performance, and reduces defects such as stress mottling and wind stains.
Adopting an integrated cabinet-type design, the equipment features a streamlined and neat layout, which effectively reduces floor occupation and significantly improves the space utilization rate of the workshop.
The heating system reaches 600°C from ambient temperature within 25 minutes, shortening preheating time and boosting batch efficiency. Optimized heat utilization cuts energy consumption by 12% versus conventional systems for higher productivity and lower costs.
It collects real-time data on the spacing of glass sheets fed into the furnace and precisely adjusts the heating output power of each zone to stabilize the temperature field inside the furnace. The system achieves a temperature control response sensitivity of 0.02 seconds. With user-friendly and intuitive operation, it improves heating efficiency and reduces production energy consumption.

Glass Application

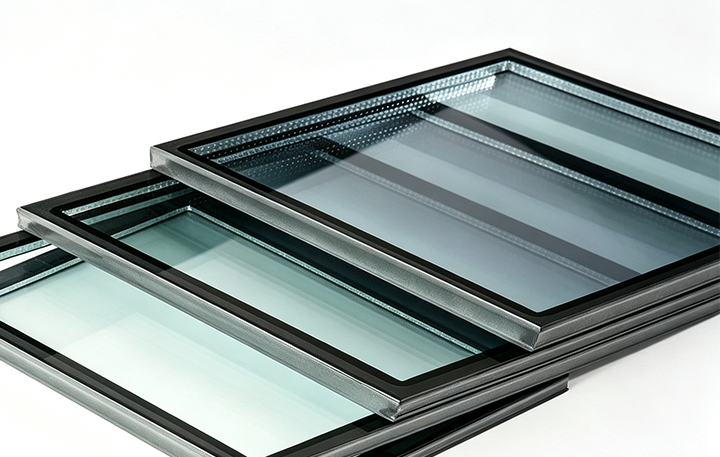

Single/Double/Triple Silver Low-E Glass

Coated Glass

Float Glass

Ultra-clear Glass

Tinted Glass

Screen Printed Glass

Patterned Glass

Relevant Cases

Choosing Southtech pass-through flat glass tempering furnace means choosing a truly customized solution tailored to you.We understand each production line and glass requirement is unique, so we provide full-chain customization from furnace size, technical configuration to cooling system.Whether efficient processing of 3~19mm multi-spec glass or precise matching for special processes, Southtech delivers tailored solutions: flexible heating layout, accurate temperature control strategy, intelligent cooling optimization, ensuring perfect fit with your production scenario.

Technical Parameters

Furnace Model	Max. Loading Area	Min. Glass Size	Processing Thickness Range	Production Capacity of Thinnest Clear Glass	Production Capacity of Thinnest Low-E Glass
PG6028-HC	6000x2800mm	350x350mm	5~19mm	≥14batches/h	≥13batches/h
PG7028-HC	7000x2800mm	350x350mm	5~19mm	≥14batches/h	≥13batches/h
PG7030-HC	7000x3000mm	350x350mm	5~19mm	≥14batches/h	≥13batches/h
PG6028-2S-HC	6000x2800mm	350x350mm	5~19mm	≥25batches/h	≥24batches/h
PG7028-2S-HC	7000x2800mm	350x350mm	5~19mm	≥24batches/h	≥25batches/h
PG7030-2S-HC	7000x3000mm	350x350mm	5~19mm	≥24batches/h	≥23batches/h
For more product parameters, please leave a message.

Innovation Powers the Future of Glass Manufacturing! Southtech Wraps Up a Successful 2025 China Glass Expo

Technology Exhibition concluded successfully at the National Convention Center. As one of the world’s leading events for the glass industry, this year's show brought together global manufacturers, suppliers, technology innovators, and industry professionals to explore the latest trends shaping the future of glass production.

Composition and principle of glass flat bending tempering furnace

The glass flat bending tempering machine mainly consists of five parts: upper plate stage, heating furnace, bending air grille, flat air grille, and lower plate stage; In addition, auxiliary facilities such as fans, air collection boxes and ducts, electrical control systems, and computer terminals are included.

Southtech Anhui Wuhu Base Third Phase Factory Fully Commissioned: A New Milestone in Glass Tempering Furnace Development

A significant milestone has been reached as the third phase of Southtech’s Anhui Wuhu Base factory has officially entered full-scale production. This marks not only a major step forward in the company’s development but also a powerful leap toward higher-quality, large-scale manufacturing in the glass tempering furnace industry.

FAQ

Not at all. We also provide retrofitting and upgrade services for furnace equipment manufactured by competing brands.
One-time investment, lasting long-term returns. The 15%–20% capacity increase, lower energy usage and improved product quality help customers fulfill peak order demands and shorten delivery lead times, with substantial annual electricity cost savings leading to a short investment payback period. Large-scale projects including those with China National Building Material have passed acceptance and maintained stable operation, making this a reliable upgrade solution.
The upgraded system supports automatic power compensation, real-time fan fault alerts, and remote online equipment diagnostics. It lowers operational barriers, enables mobile production supervision, maintains consistent product quality, and minimizes manual intervention.
We offer 7×24-hour technical support and regional on-site rapid response services. Our visualized service workflow and intelligent operation & maintenance platform enable real-time equipment monitoring, fault early warning, and digital management of production data, delivering complete peace of mind for customers.
Absolutely. We maximize the reuse of core original parts such as fans, paired with customized high-efficiency fans and IE4/IE5 energy-efficient motors to lower upgrade costs and shorten construction lead times. Furnace extension is also available (e.g., extending a 30m furnace to 42m or 46m) to drastically boost throughput.
Southtech adopts a brand-new patented heating system paired with optimized structures, which effectively cuts unit energy consumption and slashes long-term operating costs.
The optimized convection mode drastically reduces wind marks (invisible when stacking 5 sheets of clear glass with a total thickness of 50mm). It greatly raises the yield rate of high-end glass and ensures consistent finished product quality.
Yes, the upgrade brings a notable capacity boost. Field tests conducted on 5mm clear float glass show the hourly output rises from an average of 14 batches before the upgrade to 15–19 batches afterward, representing a 15%–20% efficiency improvement.
The technical upgrade solution for Southtech architectural radiant furnaces is specially designed for the retrofitting of traditional old convection-radiant furnaces. Upgrading to an advanced new convection system delivers remarkable improvements in equipment performance. Equipment from competing brands can also be retrofitted with Soos systems, delivering long-term benefits from a one-time investment.
